Interactive Podium Monitor
PresenStation 800F1
The PresenStation 800F1 (QIT800 F1) Interactive Pen Monitor empowers presenters to engage with their audience in 4K by mirroring a connected computer to a large format display. Ideal for meeting rooms, lecture halls, and auditoriums, this advanced pen display allows you to seamlessly interact with digital content.
stay engaged while controlling your presentation in 4K.
Complete control from one screen, so your eyes can stay on your audience. Make any presentation more interactive and adaptive. Write, draw, and annotate directly with your fingers, or with the precise EM pen. Control multiple displays without ever turning your back to the audience. Annotate over any screen image or video with QOMO Flow!Works Pro.
more power in your pen.
With dual touch technology—you can write, draw, and annotate with a precise tough pen or your fingers
on the anti-glare, anti-fingerprint screen.
Pressure Sensitive Touch
Precise EM technology allows you to draw heavy or faint lines — just like a pen on paper. Even better, the battery-free pen never needs charging.
Intuitive Capacitive Touch
Multi-touch for fingertips makes it easy and intuitive to use — just like using your smartphone. And, unique to QOMO, this feature can be turned on/off with the touch of a button.
designed to fit your set up

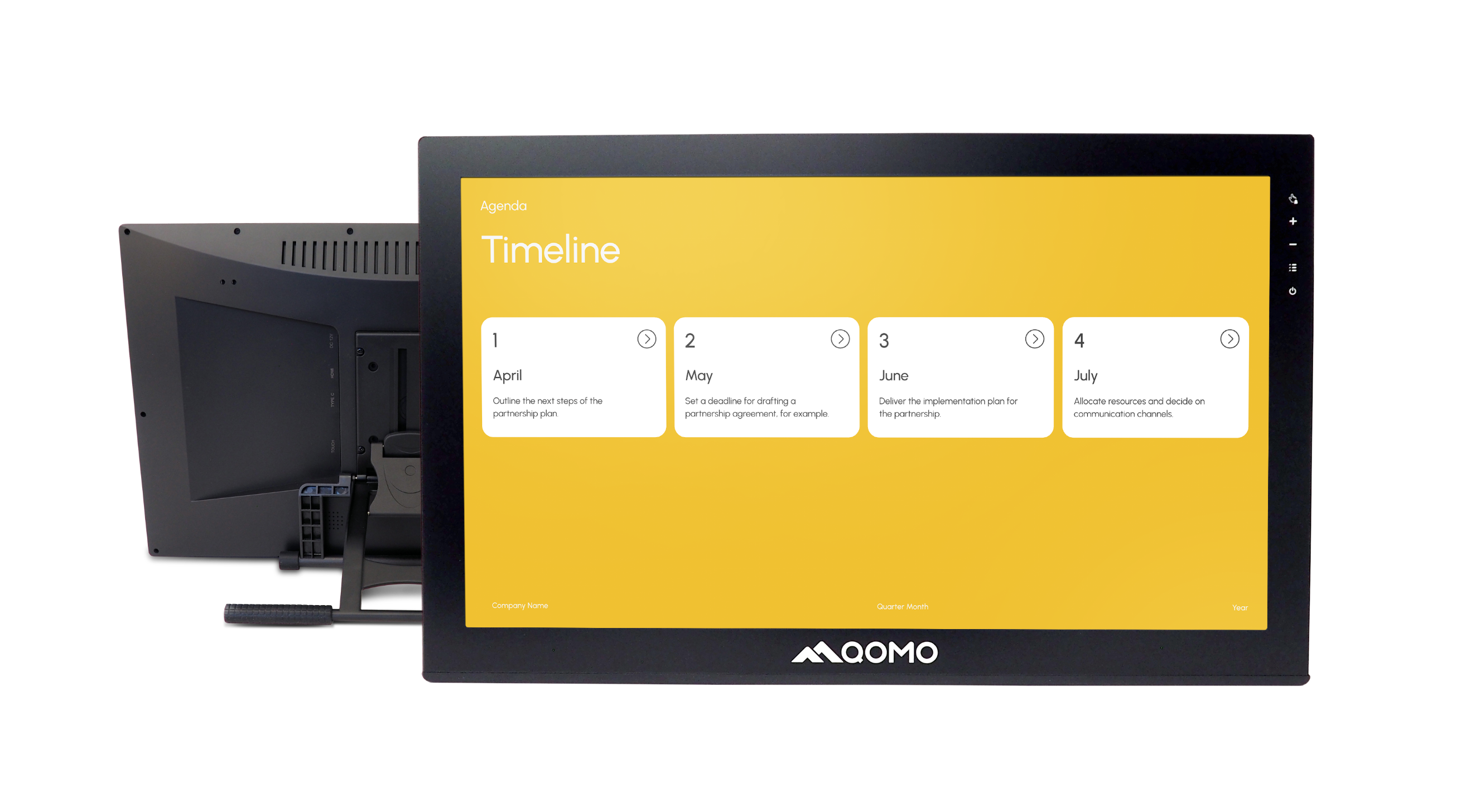

Adjust the PresenStation to the most comfortable writing angle, between 90 degrees and almost completely flat, allowing nearly limitless positioning.
The back of the PresenStation has a standard VESA pattern. Attach to virtually any 3rd-party mount, directly to your podium or desk.
play it safe with our warranty program.
helpful resources for you and your team.
-
Product Specifications
Touch Technology Capacitive finger touch & EM pen Screen Size 24 inch 20.75(H) × 11.67(V) inches Panel Type Active-Matrix Liquid Crystal Display (TFT) Resolution 3840(H) × 2160 (V) Response Time 14 ms Colors 1.07B Contrast Ratio 1000:1 Brightness 300cd/m2 Viewing Angle 178° (H), 178° (V) Capacitive Touch Points 10 Pen Technology Battery-less Passive Pen PA2 Active Area 20.75(H) × 11.67(V) inches Stylus Battery-less Passive Pen PA2 Pressure Sensitivity 8192 Levels Reading Resolution 5080Lpi Accuracy ±0.5 mm (center) Glass 1.8mm AG surface Ports DC power in x1；HDMI IN x1； USB3.0 TYPE B x 1 ，TYPE C Full function x1， USB3.0 TYPE A x3 (Host) ；HDIM OUT x1, VESA 75mm x 75mm Operation/ Storage Temperature 0°C~50°C / -20°C~60°C Power Consumption 40W（MAX） Input Power AC100~240V Universal Dimensions 23.1in x 14.2in x 1.9in -
Product Downloads
Type Filename Notes Size Download
4K PresenStation 800F1 Writing Monitor (QIT800 F1) Brochure Brochure for QOMO's 24" 4K Interactive Podium Monitor. Includes HDMI In/Out, USB B, USB C, (3) USB Ports, Capacitive Touch and Electromagnetic (EM) Pen 369.50 KB Download
